BLANKOM IPTV Encoder-Multiprotocol-Streamer designed for TV signal distribution in excellent quality over LAN and INTERNET
The H.264 (AVC) compatible compression technology features low bit rates for IPTV/OTT systems. The high-efficient encoding chips saves bandwidth cost through all its resolution range. Distribution of SD and HD TV channels through the IPTV/OTT network using state-of-art IP technology from almost any kind of video input.
- CVBS and HDMI 1080p MPEG4 Video Encoder-streamer, AAC, MP2, MP3 Audio encoding
- HD & SD Resolution 1080p, 720p, 576i/480i(PAL/NTSC)... Downscaling supported
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 2 CVBS + 2 HDMI simultaneous and independent Live stream
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- Hospitality TV-to-IP applications (CVBS-PAL signal conversion and distribution)
- Video conferencing, Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: ADE-1264
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: ADE-4264
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: ADE-08264/16264
BLANKOM Full HD-HDMI Encoder-Streamer: HDE-264 HDMI MPEG4 IPTV encoder. The H.264 (AVC) compatible compression technology features low bit rates for IPTV/OTT systems.
- HDMI up to 1080p MPEG4 Video Encoder-Streamer
- HD & SD Resolution 1080p, 720p, 576i/480i... (i)->(p), Downscaling supported
- Protocol's supported: Unicast RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 2 HDMI simultaneous and independent Live streams
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- Hospitality TV-to-IP applications (HDMI signal conversion and distribution)
- Video conferencing, Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: HDE-1264
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: HDE-4264
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: HDE-08264/16264
BLANKOM Full-HD-HDMI Encoder-Streamer: HDE-265(L) HDMI IPTV encoder: h.265 (HEVC) and h.264 (AVC) compatible compression technology. The high-efficient encoding chip saves bandwidth cost through all its resolution range. Distribution of SD and HD TV channels using state-of-art IP technology with SRT support
- HDMI up to 1080p HEVC & MPEG4 Video Encoder-Streamer
- HDMI Loop output to ext. Monitor as 'HDE-265L' version
- HD & SD Resolution 1080p, 720p, 576i/480i... (i)->(p), Downscaling supported
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 4 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- Hospitality TV-to-IP applications (HDMI signal conversion and distribution)
- Video conferencing, Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: HDE-1265
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: HDE-4265
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: HDE-08265/16265
VGA Encoder-Streamer: VDE-265(L) VGA IPTV BLANKOM Encoder designed for Monitor Displays. The h.265 (HEVC) and h.264 (AVC) compatible compression technology features low bit rates for IPTV systems. Application: Clinic Monitor display streaming. The high-efficient encoding chip saves bandwidth cost through all its resolution range. Distribution of WUXGA, SD and HD VGA displays through the IPTV/OTT network with SRT support
- VGA up to 1200, 1080p HEVC & MPEG4 Video Encoder-Streamer
- VGA Loop output to ext. Monitor
- HD & SD Resolution WUXGA = 1920x1200, 1080p, 720p, 576i/480i... (i)->(p), Downscaling supported
- External Stereo Audio input and output by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 4 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- Hospitality TV-to-IP applications (VGA signal conversion and distribution)
- Video conferencing, Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: VDE-1265
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: VDE-4265
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: VDE-08265/16265

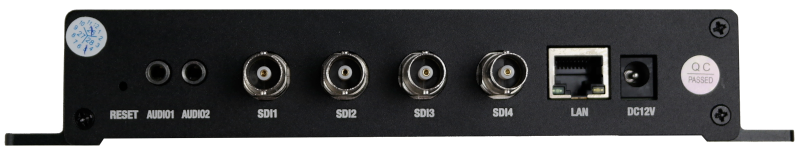

BLANKOM Full HD-SDI Encoder-Streamer: SDE-265 SDI IPTV encoder. The h.265 (HEVC) and h.264 (AVC) compatible compression technology for low bit rates for IPTV/OTT systems. The high-efficient encoding chip saves bandwidth cost through all its resolution range.
- HD-SDI up to 1080p HEVC & MPEG4 Video Encoder-Streamer
- SDI Loop output to cascade the Coax RF-Signal
- HD & SD Resolution 1080p60, 720p, 576i/480i... (i)->(p), Downscaling supported
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 4 SDI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- Broadcaster TV-to-IP applications (SDI signal conversion and distribution)
- Video distribution, OBVan, SDI-Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: SDE-1265
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: SDE-4265
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: SDE-08265/16265
BLANKOM UHD-HDMI Encoder-Streamer and TS-RECORDER: HDE-275(L) UHD 4kp30 HDMI IPTV encoder. The h.265 (HEVC) and h.264 (AVC) compatible compression technology features low bit rates. The high-efficient encoding chip saves bandwidth cost through all its resolution range. Distribution of UHD, SD and HD TV channels through the IPTV/OTT network with SRT support
- UHD-HDMI up to 4K 2160p30 HEVC & MPEG4 Video Encoder-Streamer
- Content-Recording e.g. with OBS and to USB or µSDCard and Samba-Network folder access support
- Available as 'Light' Version w/o USB/µSDCard Recording and no Samba: HDE-275L but HDMI-loop out
- UHD, HD & SD Resolution 2160p30, 1080p60, 720p, 576i/480i... (i)->(p), Downscaling supported
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 4 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- TV-to-IP applications (HDMI signal conversion and distribution)
- Video distribution, OBVan, HDMI-Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: HDE-1275
- with 4 encoder units in 19'' 1RU with int. PSU 100-240V-AC: HDE-4275
- with 8 or 16 units as 19'' 3RU with dual PSU 100-240V-AC: HDE-08255/16275
BLANKOM UHD-HDMI Encoder-Streamer and TS-RECORDER: HDE-276 UHD 4kp60 HDMI HDR IPTV Encoder-Streamer. h.265 (HEVC) and h.264 (AVC) & HDR compatible compression technology features low bit rates for IPTV/OTT systems. Distribution of UHD, SD and HD TV channels through the IPTV/OTT network using state-of-art IP technology with SRT support
- UHD-HDMI HDR up to 4K SMPTE 4096x2160p60 HEVC & MPEG4 Video Encoder-Streamer
- Content-Recording e.g. with OBS and to USB 3.0/TF card in NTFS/exFAT/FAT32 format and Samba-Network folder access support
- UHD, HD & SD Resolution 4K 4096/3840x2160@60, 1080p60, 720p, 576i/480i... (i)->(p), Downscaling supported
- 2K 2560x1440@144fps input and output, BT.2020 WCG, HDR10: 10bit input and encoding by h.265 Main10 Profile
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- max. 4 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- TV-to-IP applications (HDMI signal conversion and distribution)
- Video distribution, OBVan, HDMI-Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: HDE-1276
The new UHD SDI & HDMI Encoder-Streamer and TS-RECORDER: SHDE-400 UHD 4kp60 12G-SDI & HDMI IPTV encoder designed for TV signal distribution. The h.265 (HEVC) and h.264 (AVC) compatible compression technology. Distribution of UHD, SD and HD TV channels through the IPTV/OTT network using state-of-art IP technology with SRT support
- UHD-HDMI and 12G SDI up to 4K SMPTE 4096x2160p60 HEVC & MPEG4 Video Encoder-Streamer
- Parallel encoding of HDMI and 12G SDI inputs (1x HD + 1x UHD encoding)
- Content-Recording e.g. with OBS and to USB 3.0/TF card in NTFS/exFAT/FAT32 format and Samba-Network folder access support
- UHD, HD & SD Resolution 4K 4096/3840x2160@60, 1080p60, 720p, 576i/480i... (i)->(p), Downscaling supported
- 2K 2560x1440@144fps input and output
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- max. 4 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- TV-to-IP applications (HDMI signal conversion and distribution)
- Video distribution, OBVan, HDMI-Camera streaming (ONVIF support)
- Available as 19'' 1RU with dual PSU 100-240V-AC: SHDE-4000
- Available as 19'' 1RU with 2 encoders and single PSU 100-240V-AC: SHDE-4002
BLANKOM UHD/HD-HDMI Encoder-Streamer: HDE-275Q 2x UHD 4kp30 + 2x HD HDMI IPTV encoder designed for TV signal distribution. h.265 (HEVC) and h.264 (AVC) compatible compression technology features low bit rates for IPTV/OTT systems. Distribution of SD and HD TV channels through the IPTV/OTT network using state-of-art IP technology with SRT support
- 4x HDMI Input with 2x 4Kp30 + 2x Full-HD HEVC & MPEG4 Video Encoder-Streamer
- UHD, HD & SD Resolution 2160p30, 1080p60, 720p, 576i/480i... (i)->(p), Downscaling supported
- External Stereo Audio input by 3.5mm jack
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Max. 4x4 = 16 HDMI encoded simultaneous and independent IP Live streams in parallel
- DVB-TS conform, ffmpeg, CBR/VBR, Text and Logo insertion as Video overlays
- TV-to-IP applications (HDMI signal conversion and distribution)
- Video distribution, OBVan, HDMI-Camera streaming (ONVIF support)
- Available as 19'' 1RU with int. PSU 100-240V-AC: HDE-1275Q
- with 4x4 = 16 HDMI encoder units in 19'' 1RU with int. PSU 100-240V-AC: HDE-4275Q
BLANKOM 19 Inch Rackmount variants are available according to customer demands as well as spareparts like PSU, Coverplates, ...
- 1RU with integrated PSU & 1 or up to 4 Encoder-PCB's equipped
- 3RU with dual integrated PSU's
- 3RU: Customisable number of equipped Encoder-Blades
- 3RU: Usualy ordered with 8 or 16 Encoders
DS-Counterpart UHD-HDMI & HD-SDI IP to HDMI/SDI Decoder: HDD-275 UHD 4kp30 IPTV Receiver-Decoder designed for TV signal distribution. The h.265 (HEVC) and h.264 (AVC) compatible De-compression supporting low bit rates for IPTV/OTT and Digital Signage systems. Reception of IP streams in UHD, SD and HD TV video streams through the IPTV/OTT network using state-of-art IP technology by unicast (SRT listener and caller support) and multicasts
- Outputs: UHD-HDMI, HD-SDI (embedded stereo), VGA, CVBS, Audio
- UHD Resolution 2160p30, 1080p, 720p.... no interlaced - HEVC & MPEG4 Video decoder
- Available as HDD-275-H: w/o SDI output, different housing
- Inputs: up to 4x UHD/HD/SD in h.264 or h.265 compatible IP streams
- Stereo Audio embedded decoding of AAC and MP1L2, external Audio Output (3.5mm Stereo)
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- MPTS Input with Program selection for decoding
- 4-Stream Mosaic-Display in HD or UHD selectable by Web-IF
- Reception of Video Camera UHD/HD streams and other source content over LAN or WAN
- Inserting of Text, Logos and scrolling Text as TV-Overlays
- High Quality metal shielded casing
- Remote management by an inbuilt Webserver-Interface
BLANKOM UHD-HDMI & HD-SDI IP to HDMI/SDI Decoder: HDD-276 UHD 4kp60 IPTV Receiver-Decoder designed for TV signal distribution. h.265 (HEVC) and h.264 (AVC) compatible De-compression technology supporting low bit rates for IPTV/OTT and Digital Signage systems. Reception of IP streams in UHD, SD and HD TV video streams through the IPTV/OTT network using state-of-art IP technology by unicast (SRT listener and caller support) and multicasts
- Outputs: UHD-HDMI, CVBS, Audio
- Transcoding capable: Input-Stream can be re-encoded and re-streamed
- UHD Resolution 2160p60, 1080p, 720p... - HEVC & MPEG4 Video decoder, down- and upscaling support
- Inputs: up to 4x UHD/HD/SD in h.264 or h.265 compatible IP streams
- Stereo Audio embedded in HDMI decoding of AAC and MP1L2, external Audio Output (3.5mm Stereo)
- Protocol's supported: Unicast SRT, RTSP, RTMPs, HTTP, HLS, FLV, MJPG and Multicast UDP/RTP
- Reception of Video Camera UHD/HD streams and other source content over LAN or WAN
- Inserting of Text, Logos and scrolling Text as TV-Overlays
- Remote management by an inbuilt Webserver-Interface
The BLANKOM HSD-450 HDMI to SDI Converter allows HDMI signal to be shown on SDI displays while ensuring high Resolution of 1080p to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your HDMI signal while giving you the ability to display your work on SDI displays thanks to the built in SDI converter. Furthermore, thanks to the Dual output SDI design, users are able to enjoy SDI distribution at the same time. The BLANKOM SHD-450 SDI to HDMI Converter allows SD-SDI, HD-SDI, and 3G-SDI signal to be shown on HDMI/SDI displays while ensuring high bit rates of 2.970 G bit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter. Pure hardware design, scaler, Intelligent Identification, broadcast-grade circuit design
- FULL HD1080p (3G-SDI) and backward 1080i/720p (HD-SDI) &576i/480p (SD-SDI)
- Transcoding capable: Input-Stream can be re-encoded and re-streamed
- Low SDI Jitter and SDI re-clocking = long cable compensation w/o any loss of Video quality
- HSD-450 HDMI to 2x HD-SDI has 2 SDI output
- SHD-450 HD-SDI to HDMI has a SDI-Loop output
- Automatic input standard and format detection
- Usecase: HDMI cable has restrictions: 10m. To easy extend this with Coax up to 100m use both as a couple
- Designed for 24/7 continuously operation
Product Overview
Digital Signal Processor TV Video-Encoder with Multiprotocol IP streamer working with CVBS FBAS analogue Input combined with HDMI up to FullHD or 3G HD/SD SDI streaming in Multicast and various Unicast protocols. Boxed versions, 1RU or 3RU available.
| Input Type | Remarks , Extras | ||
|---|---|---|---|
| Analog & HDMI FHD | ADE-264 | IP Streamer, CVBS + HDMI, with 2 Encoder-streamer - engines | Boxed version with ext. PSU, No SRT |
| ADE-1264 | IP Streamer, CVBS + HDMI, with 2 Encoder-streamer - engines | 19'' 1 RU with int. PSU 100-240V-AC | |
| ADE-4264 | 4x Encoder-streamer , CVBS + HDMI, with 4 (x2) Encoder-streamer - (engines) | 19'' 1 RU with int. PSU 100-240V-AC | |
| ADE-08264 | IP Streamer, CVBS + HDMI, with 8 (x2) Encoder-streamer modules (engines) | 19'' 3 RU with int. dual red. PSU 100-240V-AC | |
| ADE-16264 | IP Streamer, CVBS + HDMI, with 16 (x2) Encoder-streamer modules (engines) | 19'' 3 RU individually configurable combinations |
| Input Type | |||
|---|---|---|---|
| HDMI Full HD | HDE-264 | IP Streamer, HDMI, with 2 Encoder-streamer - engines | Boxed version with ext. PSU, No SRT |
| HDE-1264 | IP Streamer, HDMI, with 2 Encoder-streamer - engines | 19'' 1 RU with int. PSU 100-240V-AC | |
| HDE-4264 | 4x Encoder-streamer, HDMI, with 4 (x2) Encoder-streamer - (engines) | 19'' 1 RU with int. PSU 100-240V-AC | |
| HDE-08264 | IP Streamer, HDMI, with 8 (x2) Encoder-streamer modules (engines) | 19'' 3 RU with int. dual red. PSU 100-240V-AC | |
| HDE-16264 | IP Streamer, HDMI, with 16 (x2) Encoder-streamer modules (engines) | 19'' 3 RU individually configurable combinations |
| Input Type | |||
|---|---|---|---|
| HDMI FHD | HDE-265(L) | IP Streamer, HDMI, with 4 Encoder-streamer - engines available with HDMI Loop-out | external Stereo IN, Boxed, with ext. PSU, h.264 & HEVC h.265, SRT support |
| HDE-1265(L) | IP Streamer, HDMI, with 4 Encoder-streamer - engines | 19'' 1 RU with int. PSU 100-240V-AC, available with HDMI Loop-out | |
| HDE-4265 | 4x Encoder-streamer, HDMI, with 4 (x4) Encoder-streamer - (engines) | 19'' 1 RU with int. PSU 100-240V-AC | |
| HDE-08265 | IP Streamer, HDMI, with 8 (x4) Encoder-streamer modules (engines) | 19'' 3 RU with int. dual red. PSU 100-240V-AC | |
| HDE-16265 | IP Streamer, HDMI, with 16 (x4) Encoder-streamer modules (engines) | 19'' 3 RU individually configurable combinations |
| Input Type | |||
|---|---|---|---|
| SDI Full HD HEVC | SDE-265 | IP Streamer, HD-SDI, SDI Loop out, with 4 Encoder-streamer - engines | Boxed version with ext. PSU, h.264 & h.265, SRT support |
| ext. Stereo input | SDE-1265 | IP Streamer, HD-SDI, with 4 Encoder-streamer - engines | 19'' 1 RU with int. PSU 100-240V-AC |
| SDE-4265 | 4x Encoder-streamer, HD-SDI, with 4 (x4) Encoder-streamer - (engines) | 19'' 1 RU with int. PSU 100-240V-AC | |
| SDE-08265 | IP Streamer, HD-SDI, with 8 (x4) Encoder-streamer modules (engines) | 19'' 3 RU with int. dual red. PSU 100-240V-AC | |
| SDE-16265 | IP Streamer, HD-SDI, with 16 (x4) Encoder-streamer modules (engines) | 19'' 3 RU individually configurable combinations |
| Input Type | |||
|---|---|---|---|
| VGA Input | VDE-265 | IP Streamer, VGA, Loop out, with 4 Encoder-streamer - engines | Boxed version with ext. PSU, h.264, h.265 , ext. Audio inSRT support |
| Input Type | |||
|---|---|---|---|
| HDMI Input 4K | HDE-275/4K5C | IP Streamer, 4Kp30-UHD, HDMI, h.265/264, GbE | boxed, ext.PSU, WallMount =4K5C, Record to µSDcard or USB3.0,SRT support |
| Light version | HDE-275L light | IP Streamer, 4Kp30-UHD, HDMI In with loop out, h.265/264, GbE, no Recording | boxed, ext.PSU or optional PoE 12V DC, SRT |
| (limited edition) | HDE-276 | IP Streamer, 4Kp60-HDR UHD, HDMI-IN and -Out, h.265/264, GbE | boxed, ext.PSU, Record to µSDcard or USB3.0 FAT32 |
| 4 in 1 | HDE-275Q | IP Streamer, 2x 4Kp30 UHD+ 2x FHD HDMI-IN, h.265/264 | boxed, ext.PSU, 1x GbE output |
| 16 in 1 | HDE-4275Q | 4x 4 HDMI IN, 8x 4Kp30 + 8x FHD, h.265/264to 1x GbE IP multiprotocol | streamer in 19'' 1RU high compact 4x GbE out |
| SAMBA FS support | SHDE-400 | 12G-SDI + HDMI-4Kp60 encoder-streamer 1x HDMI + 1x 12G SDI input, encoding in parallel | Recording to USB/TFcard, Samba , boxed, ext. PSU |
| SHDE-4000 | 12G-SDI + HDMI-4Kp60 encoder-streamer 1x HDMI + 1x 12G SDI input, encoding in parallel | Recording, Samba , 1 RU 19'', dual PSU, with 2 modules upon request |
Multiprotocol TV Video-Decoder / IP stream receiver and SDI-HDMI converter
Perfect designed for working together in combination with our SDE/HDE encoder streamer family or as Internet Stream receiver.
| Input Type | Modelname | Short Description | Remarks , Extras |
|---|---|---|---|
| UHD-4K decoder | HDD-275 | up to 4Kp30 support, unicast/Multicast inputs, 4-Mosaic feature, | Boxed version with ext. PSU; HDMI, VGA, HD-SDI, CVBS out |
| light version | HDD-275-H | up to 4Kp30 support, unicast/Multicast inputs, 4-Mosaic feature, | Boxed version with ext. PSU; HDMI, VGA, CVBS out |
| 4x decoder | HDD-4275-H | 4x up to 4Kp30 support, unicast/Multicast inputs, 4-Mosaic feature, | 19'' 1 RU with int. PSU 100-240V-AC, HDMI,VGA, CVBS out, |
| 4kp60 decoder | HDD-276 | up to 4Kp60 support, Unicast/Multicast Inputs: SRT/ HTTP/ HLS/ FLV/ RTSP/ RTMP(S)/ UDP/RTP | Boxed version with ext. PSU, HDR HDMI out, CVBS Out, Transcoding IP out |
| HDMI-SDI Converter | HSD-450 and SHD-450 | TV Signal Converter HDMI to 2x HD-SDI out, SDI to 1x HDMI out with SDI loop out | HDMI 1.4 and 3G/HD/SD-SDI, max. 1080p60, ext. PSU |
