Satellite by Fiber Systems

optical LNB SAT distribution

1 SAT-Pos 1 Fiber Compact - 19 INCH 1-4 SAT 1 Fiber Transmitter/Receiver - 1-4 SAT 1 Fiber- Multiswitches- 1 SAT 4 Fiber Transmitter/Receiver -

In Stock
1 SAT-po. Transmitter
1 SAT 1 Fiber receiver
Price: upon request eMail

BLANKOM Compact-sized 1 SAT-Position 1 Fiber BFT-404 and BFR-104 couple:
Transmitter (E/O) BFT-404 and Receiver (O/E) BFR-104.
Available accessories: An outdoor housing for wall- and mast mounting because of weather safety for the Transmitter.
Power supplies: 110-240 VAC or 48VDC (Telco-stations) upon request

  • 1 Satellite (4x Quad/Quattro L/C-Band MDU LNB support)
  • Isolated linearer DFB Laser CWDM
  • SAT-IF with wavelengthmultiplex via one single fiber
  • Available as 4dBm (BFT-404) or 8dBm (BFT-408)
  • Gain adjustment for every of the 4 RF Inputs
  • LNB power supplying, External Power Supply 12V
  • External metal housing for Mast or Wall mounting available
  • 950-2150 MHz (SAT- IF) Bandwidth output
  • Voltage power LED Indicators
  • BFR-104 optical Receiver powered by following multiswitch

In Stock
1 SAT-po. Transmitter
1 SAT 1 Fiber receiver
4 SAT-po. Transmitter
4 SAT 1 Fiber receiver
Price: upon request eMail

BLANKOM 19 inch 1...4 SAT-Position(s) via 1 Fiber BPF and BFR:
Transmitter (E/O) BPF-11 (-41) and Receiver (O/E) BFR-11 (-41).
Long-Distance SAT over Fiber Systems for 1, 2, 3 and 4 Satellite positions supporting 1...4 standard Quad/Quattro LNB's:
1 SAT- (BPF/BFR-11) and 4 SAT- (BPF/BFR-41) over 1 Fiber couples and can be mixed, optical splitted (up to 64 times) to serve wide campus areas...

  • 1 or 4 Satellit positions (4x Quad/Quattro L/C-Band LNB support)
  • Isolated linearer DFB Laser CWDM, Optical Wavelength Range 1270...1570nm* (CWDM) (1270 contains Terr+ VL)
  • SAT-IF (opt. with terr) in Wavelengthmultiplex via 1 single fiber SC/APC
  • Available Laser power with 4dBm (BPF-11-4) (BPF-41-4)or 8dBm (BPF-11-8) (BPF-41-8)
  • AGC= Automatic Gain Control for every of the 5 Inputs
  • LNB supplying voltage with ON-OFF switch and short-Protection
  • Inbuilt high-linearer AGC Amplifier in BPF 11-8 Transmitter
  • BPF 8dBm Transmitter with internal Slope-automatic (standart)
  • 950-2150 MHz (SAT- IF) Bandwidth and 47-870 MHz (Digital Terrestrial)
  • Voltage and operation- LED Indicators and automatic Fan cooling System

  • Optical RECEIVER: For 1..4 SAT Positions (+ terrestrial) via 1 CWDM 1270 ... 1570
  • Internal Amplifier and 35 dB Isolation
  • Input Dividers (fibre-optical to electrical O/E) + compensation by the internal Amplifier
  • Low loss and high power via SC/APC-LWL connector
  • Amplification adjustment: 0...20 (15) dB attenuator to optimize every SAT-polarization/band SAT-IF
  • Integrated PSU for Plug&Play- operation

In Stock
1fiber 1 SAT-pos MS
2 SAT 1Fiber MS
1 fiber 3 SAT-MS
4 SAT 1 Fiber MS
Price: upon request eMail

BLANKOM FttH Direct Fiber to the MDU with 10 Receiver outputs.
BFM-41-10 (1 SAT), BFM-31-10 (3-SAT) , BFM-21-10 (2-SAT) ,BFM-44-10 (4-SAT): Using a 19'' Rackmount Fiber Transmitter BPF-11 /-41 and optical Splitter can serve many MDU's / Towers Campus areas with direct SAT-IF to the TV sets
Available direct to home Fiber-Receiver with integrated Multiswitches for 1...4 SAT-positions with 10 Subscriber outputs per house.
Mixing 4-SAT Transmitter and 1,2,3 or 4 SAT-Position is possible because of the same wavelength concept.

  • 1, 2, 3 or 4 Satellite position* direct FttH Multiswitch
  • SC/APC optic connector, mono mode
  • SAT-IF 950-2150 MHz, Terr.: 47-870 MHz with adjustment
  • Max. optical Input Power 2 mW
  • Optical Wavelength Range 1270...1570nm* (CWDM) (1270 contains Terr+ VL)
  • Compact housing 225x140x60mm*
  • External PSU 12VDC 3A

available
4fiber transmitter
4-fiber receiver
Price: upon request eMail

1 SAT-Position 4 Fiber
Serving long distances LNB to Multiswitch using a standard QUAD- or Quattro LNB.
Different LNB Signal Inputs per polarity possible = Flexible Design for Transmitting only some polarisation/bands from more then 1 SAT-positions.
Example: SAT 1 Vertical Low & Horizontal High + SAT 2 Vertical High and Horizontal Low... or 3+1 ...
Every fiber as independent transmission on own wavelength.

  • Transmitter in outdoor Die cast chassis
  • 950-2150MHz, adjustable levels @ both sides. C Band Q Band Ku/L Band compatible
  • Quad & Quattro LNB support with 13V 18V 22Khz
  • LNB powering ON/OFF selectable. Low power consumption, LNB powering
  • 20 dB Attenuator for each polarity input - adjustable
  • Amplifier & AGC inbuilt, Automatic or manual gain adjustment
  • Receiver: Max optical input power should be 2mW (3dBm)
  • Transmitter: 2mW … 5 mW Laser (optional others available)

in STOCK
3RU Multiswitch to fiber
1TV Set outlet
2TV Set outlet
17-32 optical MS-System
Price: upon request eMail

BLANKOM's new stunning Optical Ftt-Living room System replaces traditional coax cabling in the age of modern fiber optic installations.
Up to 4 SAT-Positions directly serving centrally by BFM-1732C and corresponding wall-outlets as single or dual versions: BFR-01 or Dual = BFR-02

  • Signal transport with fiber optic SC/APC single mode to wall sockets
  • Up to 8 Cascades with each output Tap pass loss 0,5dB
  • LNB on/off switch (off for cascaded units) and LED indicator of each Receiver output
  • Active TERR input (also available as passive input)
  • LNB supply feature 13V - 18V, Quad- & Quattro- LNB compatible
  • High isolation industrial dual PSU’s
  • Low power usage thanks to a new generation smd components
  • Cooling control by 2 separate fans
  • Level adjustments for the trunk outputs by single attenuators

  • Compact size Outlet boxes: Single and Dual TV-SAT-Receiver connections
  • SAT- / TV- Receiver sourced - no external PSU necessary
  • SAT- Transponder Downstream Wavelength: 1550nm
  • SAT-Signalling (13/18V, 0/22Khz, DiSEqC) via Return-Channel Upstream on: 1310nm
  • SC/APC - standard optical connectors
Input Type Modelname Short Description - NEW 2023/24 Remarks , Extras
New:Compact 1fiber BFT-404 1x SAT Quattro LNB to 1 fibre CWDM Transmitter with Level adjustments available with 4mW or 8mW laser, ext. PSU, optional outdoor housing available
it's compact receiver BFR-104 corresponding Fibre optical receiver for BFT-404/408 models, single core fiber input to 4x RF out coax, sourced by multiswitch 1 SC/APC mono mode fiber 1270…1330nm (CWDM), voltage control led , 4x RF out VL,HL,VH,HH 75 Ohm F-female
CWDM 1fiber BPF-41 - 4 4x SAT pos. + 1x terr. To 1 fibre CWDM System Transmitter 19 Inch with 4 mW laser (dep. on distances)
Optical Multiswitch System BFM-1732C 4x SAT pos. + 1x terr. FttH system 32 fibre outputs, 19 Inch cascadable, direct to TV-Sets/ SAT receiver as fiber to SAT-RF outlets
Optical Multiswitch System BFR-01 / -2 Wall-Outlet for the FttH system, small sized available as single or dual units
Rackmount E/O Transmitter BPF-41 - 8 4x SAT pos. + 1x terr. To 1 fibre CWDM System Transmitter 19'' with 8 mW laser (dep. on distances)
with AGC BPF 41-8 AGC 1270-1570nm (CWDM), 16IF 4Sat, Prof. 19'' 2RU, PSU,VCC, 20dB gain control, automatic fan 1 DVB-T RF input, 1 optic output: SC/APC, 8 mW Optic Transmitter

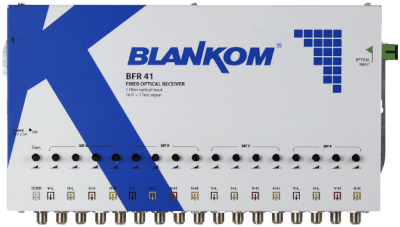

O/E receiver BFR-41 corresponding Fibre optical receiver for BPF-models, single core fiber input to 16x SAT-IF + 1x Terr outputs, with adjustments, boxed housing integrated PSU 4 sat + 1 Terr, industrial power supply, 10 dB tilt, double amplifier, 20 dB gain control, 1270-1570 nm (CWDM), voltage control led , 16IF 5(sat) + 1RF output, 1 opt. Input: SC/APC , 2mW Input power
BDR-41-19 corresponding Fibre optical receiver to the BPF-models, Single core to 16x SAT-IF + 1x Terr outputs, with 20dB adjustments, 19'' 2RU rackmount 4 Sat + 1 TerrAGC Fiber Optic Receiver SC /APC Optical Input, Industrial supply, Voltage led indicator, 1270-1570nm wavelength, 16 IF + 1 RF coaxial output
1 fiber E/O Transmitter BPF-11-4 AGC 1x SAT pos. + 1x terr. to 1 fibre CWDM System Transmitter 19 with 4 mW laser (dep. on distances)
BPF-11-8 AGC 1x SAT pos. + 1x terr. to 1 fibre CWDM System Transmitter 19'' with 8 mW laser (dep. on distances)
O/E fiber receiver BFR-11 corresponding Fibre optical receiver for BPF-11 models, single core fiber input to 4x SAT-IF + 1x Terr outputs, with adjustments, boxed housing integrated PSU 1 Sat + 1 Terr, industrial power supply, 10 dB tilt, double amplifier, 20(15) dB gain control, 1270-1570 nm (CWDM), voltage control led , 4 IF (sat) + 1RF output, 1 opt. Input: SC/APC , 2mW Input power
1 SAT O/E Multiswitch BFM-41-10 corresponding Fibre optical Multiswitch for BPF-11 models, single core fiber input to 10x F outputs, with T adjustments 1 Sat-position + 1 Terr, 1270-1330 nm (CWDM), voltage control led , 1 opt. Input: SC/APC , max 2mW Input power, boxed housing external PSU
2 SAT O/E Multiswitch BFM-21-10 corresponding Fibre optical Multiswitch for BPF-21 models, single core fiber input to 10x F outputs, with T adjustments, DiSEqC 2 Sat-position + 1 Terr, 1270-1410 nm (CWDM), voltage control led , 1 opt. Input: SC/APC , max 2mW Input power, boxed housing external PSU
3 SAT O/E Multiswitch BFM-31-10 corresponding Fibre optical Multiswitch for BPF-41 models, single core fiber input to 10x F outputs, with T adjustments, DiSEqC 3 Sat-position + 1 Terr, 1270-1490 nm (CWDM) receiver, voltage control led , 1 opt. Input: SC/APC , max 2mW Input power, boxed housing external PSU
4 SAT O/E Multiswitch BFM-44-10 corresponding Fibre optical Multiswitch for BPF-41 models, single core fiber input to 10x F outputs, with T adjustments, DiSEqC 4 Sat-position + 1 Terr, 1270-1570 nm (CWDM) receiver, voltage control led , 1 opt. Input: SC/APC , max 2mW Input power, boxed housing external PSU
Multifiber 1-SAT BFT-44-2 Multicore Fiber Optic Transmitter, 4 SAT-IF Inputs (VL,HL,VH,HH), 4 Fibre out , 2mW Laser Diecast chassis, outdoor, ext. PSU, SC/APC, avail. as BFT-44-5 with 5mW Laser
opt. Receiver BFR-44 Multicore Fiber Optic Receiver 4x fiber Inputs - 4 SAT-IF out (VL,HL,VH,HH) Metal shielded housing, ext. PSU, SC/APC, other types upon request
