SAT-Equipment On Demand
In projects or tenders we also offer accessories for the SAT distributions - such as:
- Different types of 1- or Multi- fiber SAT-IF distribution systems
- SAT-Amplifier
- Splitter and Combiner
- TAP's
- Premium Line: High quality SAT- Multiswitches Made in Germany
- Basic-Line: Standard-Consumer-Multiswitches 1-4 Satellites and 4 to 32 Receivers/Subscribers and cascades (not published yet)

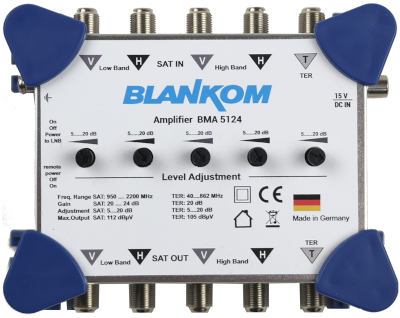

SAT-IF Amplifier 24 dB, adjustable with DC switch for 1, 2, 3, 4 SAT-Positions, Terrestrial:
Click the picture opens the datasheet
SAT-IF Splitter and Tap's:
5 Line 2 way Multisplitter
9 Line 2 way Multisplitter
9 Line Multitap 1 way / 3 way 15dB
5 Line Multitap 1 way / 2 way
9 Line 2 way Multisplitter
9 Line Multitap 1 way / 3 way 15dB
5 Line Multitap 1 way / 2 way
5-line to 3 TAP out Blockdiagramm:
There are many different types of TAP's and Splitter for Projects: Just ask us by email...
The external Power Supply unit is available in 2 types depending on: DieCast or the tin plated metal housing.
The Diecast Chassis has a female F-connector, the metal-shield housing has a DC Jack:
Application EXAMPLE:
